Historical climate

The Forecast app allows the import of monthly and daily data, these processes can also be performed through WebAdmin, but it is recommended to use Forecast app for imports containing a lot of data or many weather stations, as it allows to perform the processes much faster and with a lower consumption of resources.

Importing daily data

Daily historical data files are required for the resampling process during the generation of the climate forecast.

1. To start the import you must create a folder with the files containing the daily data of each weather station you want to import.



   Note

   The name of each file should have either the Id of the weather station or the external Id, followed by _daily and the format, which must be csv (comma separated flat file).

   • (Id or extId)_daily.csv

   All files to be imported must have the same type, external Id or Id, it cannot vary between files of the same import.

2. To import daily data you must access the path where ForecastApp is located through the console, either Linux or Windows.



   Note

   If you are using Windows it is recommended to use CMD.

3. To execute any ForecastApp command you must use the following line of code dotnet CIAT.DAPA.USAID.Forecast.ForecastApp.dll this will execute the file that will start the ForecastApp process, this command must be followed by the action you want to do.

4. To execute the import of the daily data you must use the following command dotnet CIAT.DAPA.USAID.Forecast.ForecastApp.dll -in -fcfg -p “daily data path” -tyd value.



   Note

   The command consists of the following parts:

   • dotnet CIAT.DAPA.USAID.Forecast.ForecastApp.dll = This is the first mandatory part for all ForecastApp commands, it must be complemented with the command you want to perform.

   • -in = As this is an import process, the -in parameter must be used to indicate that a data import will be performed.

   • -fcfg = This parameter indicates that a daily data import process will be performed, it is mandatory if you want to perform this process.

   • -p “daily data path” = The -p parameter indicates the path where the files to be imported are located, this parameter is followed by the path where these files are located, example: -p “C:\Users\Downloads\Daily-20221214T155614Z-001\Daily\Csv\Import\”

     • In case you use a Linux operating system the path must be separated by / and in Windows you must use \.

     • Linux example: -p “/Users/Downloads/Daily-20221214T155614Z-001/Daily/Csv/Import/”

     • Windows example: -p “C:\Users\Downloads\Daily-20221214T155614Z-001\Daily\Csv\Import\”

   • -tyd value = This parameter tells the system whether to use the file names as external ID or weather station Id, this parameter must be followed by the number representing the type of file name to be read. example: -tyd 1.

     • 1 for weather station Id.

     • 2 for external Id.

5. Once the command is prepared with all the parameters, copy the command in the console and press Enter, the process will perform the import of all the files and once finished it will display the message Import process has finished.



   Note

   The process will create a folder called tmp inside the path used in the command, in this folder will be moved the files that were successfully imported, in case the process finishes and some file has not been moved to the tmp folder is because some error occurred while importing that file.

CSV columns

Column	Meaning
day	day of the month - number type
month	month of the year - number type
year	year - number type
t_max	maximum temperature °C - double type
t_min	minimum temperature °C - double type
prec	precipitation mm - double type
sol_rad	solar radiation MJ/m²d - double type

Note

The file must be in the following format in order to correctly generate the resampling:

• This file should contain information on at least 30 years of historical data.

• The data it contains are: day, month, year, maximum temperature (t_max), minimum temperature (t_min), precipitation (prec) and solar radiation (sol_rad).

• The first row of the file is the header and should be in the following format:

  • day,month,year,t_max,t_min,prec,sol_rad

• The following lines should contain the information for this station. Example:

  • 1,1,1980,30.67449154,22.67449154,0,16.37537505

• The units of measurement for each variable are:

  • t_max = °C

  • t_min = °C

  • prec = mm

  • sol_rad = MJ/m²d

The following is an example of what the file would look like in the excel viewer

The following is an example of what the file would look like in text viewer

The files imported into the system are stored within the administration website in the Data/Configurations folder, the name of the files consists of the date (format yyyyMMddHHmmss), an antenna name (-wsconf-), the weather station id, an antenna name (-) and ends with the name of the file itself that was uploaded.

Warning

Make sure that the values of the year, month and day columns are of numeric type and the data of each measurement variable are of double type.

Importing monthly data

Monthly data is very important for the platform, this data is used for the process of climate prediction generation and information visualization. These data are used in the probabilistic prediction component

1. To start the import you must create a folder with the file containing the monthly data of each weather station you want to import.



   The name of each column should have either the name of the weather station or the external Id.

2. To import monthly data you must access the path where ForecastApp is located through the console, either Linux or Windows.



   Note

   If you are using Windows it is recommended to use CMD.

3. To execute any ForecastApp command you must use the following line of code dotnet CIAT.DAPA.USAID.Forecast.ForecastApp.dll this will execute the file that will start the ForecastApp process, this command must be followed by the action you want to do.

4. To execute the import of the monthly data you must use the following command dotnet CIAT.DAPA.USAID.Forecast.ForecastApp.dll -in -hs -s “measure” -type value -p “monthly data path”.



   Note

   The command consists of the following parts:

   • dotnet CIAT.DAPA.USAID.Forecast.ForecastApp.dll = This is the first mandatory part for all ForecastApp commands, it must be complemented with the command you want to perform.

   • -in = As this is an import process, the -in parameter must be used to indicate that a data import will be performed.

   • -hs = This parameter indicates that a monthly data import process will be performed, it is mandatory if you want to perform this process.

   • -s “measure” = The -s parameter indicates the measurement variable to be imported, this parameter is followed by the name of the variable to be imported. Example: -s “sol_rad”

     • prec = precipitation.

     • sol_rad = Solar radiation.

     • t_max = Maximum temperature.

     • t_min = Minimum temperature

   • -p “monthly data path” = The -p parameter indicates the path where the file to be imported are located, this parameter is followed by the path where this file is located, example: -p “C:\Users\Downloads\Daily-20221214T155614Z-001\Daily\Csv\Import\data.csv”

     • In case you use a Linux operating system the path must be separated by / and in Windows you must use \.

     • Linux example: -p “/Users/Downloads/Daily-20221214T155614Z-001/Daily/Csv/Import/data.csv”

     • Windows example: -p “C:\Users\Downloads\Daily-20221214T155614Z-001\Daily\Csv\Import\data.csv”

   • -type value = This parameter tells the system whether to use the column names of the file as external ID or name of the weather station, this parameter must be followed by the number representing the type of file name to be read. Example: -type 1.

     • 1 for external Id.

     • 2 for the name of the weather station.

5. Once the command is prepared with all the parameters, copy the command in the console and press Enter, the process will perform the import of all data and once finished it will display the message Import process has finished.



CSV columns

Column	Meaning
year	year - number type
month	month of the year - number type
name of the point	It can be a id, string or extension id

Note

The file must have the following format:

• Line 1 must start with the headers year and month, then the search parameter of the stations as chosen. Each station must be separated by comma. The following example is parameterized by external codes:

  • year,month,26055070,26060020,26070110

• The following lines contain the information by year, month and the values for each station. Example:

  • 1981,1,75.1,38,10

The following is an example of what the file would look like in the excel viewer

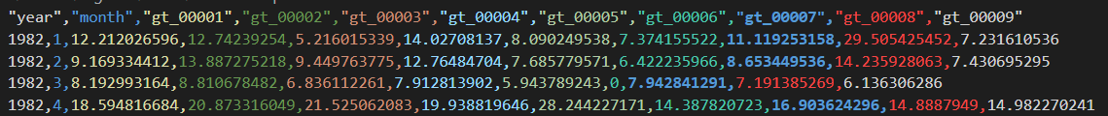

The following is an example of what the file would look like in text viewer

Warning

Make sure that the values of the year and month columns are of numeric type and the data of each station are of double type.
